Panama Canal Innovation Lessons for Structural Engineering Today
Panama Canal Innovation Lessons for Structural Engineering Today - Early structural approaches to canal navigation challenges
The earliest attempts to overcome the barrier of the Isthmus of Panama for navigation necessitated facing immense structural challenges. Beyond the sheer excavation, engineers grappled with volatile geological conditions, the logistics of moving material on an unheard-of scale, and the complex mechanics of controlling vast amounts of water. These initial efforts, even those that ultimately failed or came at tremendous human expense, forced innovation in earthmoving techniques, slope stability, and nascent concrete and lock construction. It was a brutal proving ground where theoretical knowledge met harsh reality, forging foundational approaches in dealing with unprecedented scale and environmental hostility, lessons often learned through costly setbacks.
Looking back at the predecessors to monumental projects like the Panama Canal, it's illuminating to see the ingenious, and often rudimentary, ways early builders tackled fundamental structural and navigational challenges.
One alternative to the ubiquitous lock system involved boat lifts or inclined planes. Rather than raising or lowering water levels, these systems employed mechanical means – often steam or hydraulic power driving wheeled cradles on substantial ramps – to physically haul vessels up or down hillsides, a less common but structurally demanding approach.
Water containment was another major hurdle. Without modern membranes or concrete techniques, they relied heavily on "puddling." This painstaking method involved manually mixing specific clay types with water to form a thick slurry, then compacting it layer by layer onto the canal bed and banks to create a dense, impermeable barrier, a purely labor-intensive structural solution.
Crossing significant depressions or valleys necessitated elevated structures. Early aqueducts, essentially stone or brick bridges carrying the waterway, were solid feats of masonry. Later, incorporating cast iron troughs supported by piers introduced new complexities – specifically dealing with the differential expansion and contraction of different materials and developing durable joint seals under hydrostatic load.
Designing the lock gates themselves was a critical structural problem. Facing immense water pressure, early builders didn't have modern engineered materials or advanced sealants. Their solution was expert carpentry, using dense, durable timbers like oak or greenheart shaped with precise, tight-fitting mitre joints that relied purely on the wood's inherent strength and geometry to withstand the forces and minimize leakage.
Finally, forcing a path through mountains sometimes meant boring tunnels. These required significant structural thought just to remain open. Excavation was purely manual, and immediate, robust timbering or masonry lining was essential to prevent collapse in varied and often unstable ground, presenting a constant, acute structural risk during construction.
Panama Canal Innovation Lessons for Structural Engineering Today - Accommodating increased vessel size in lock structures

Handling the substantial increase in vessel dimensions has become a key structural challenge for waterways, a test the Panama Canal decisively met. This necessitated a major intervention: the expansion and addition of a third, larger set of locks, a project vital for maintaining its role in global shipping and avoiding functional obsolescence. The scope of this work was immense, involving not just constructing significantly larger lock structures but also integrating sophisticated water management systems, including recovery basins, and advanced operational controls. This undertaking highlighted how engineering solutions of this magnitude demand broad international collaboration, leveraging diverse expertise. For structural engineering today, the experience underscores the need to design infrastructure capable of accommodating changing user requirements at immense scale, while prioritizing operational resilience and efficient resource utilization.
The imperative to accommodate significantly larger vessels in the canal’s expanded locks demanded entirely new structural solutions, moving well beyond the established techniques used for the original structures. Instead of scaling up the familiar miter gates, engineers opted for massive rolling gates for the new chambers. These weren't simple leaf gates; they were enormous hollow steel boxes, some tipping the scales at over 3,000 tonnes, designed to retract horizontally into recesses within the lock walls on integrated rail systems. The engineering challenge here wasn't just supporting the weight, but precisely controlling the movement and ensuring longevity under constant use and hydrostatic pressure, a considerable departure from the pivot mechanics of older gates.
Perhaps less immediately obvious to the observer than the gates themselves is the ingenious system devised for water conservation. With the vastly larger volume of the new chambers, simply filling and emptying them traditionally would place an unsustainable demand on the fresh water supply. The solution involved constructing nine colossal concrete water-saving basins adjacent to each lock set, layered across three levels. These aren't small tanks; they are vast, integrated structures designed to store and gravity-feed water back into the chambers, enabling the reuse of up to 60% of the water during each transit cycle. This adds a significant layer of structural complexity beyond the lock chamber walls themselves, requiring careful consideration of dynamic water loads and sequential filling/emptying forces on these massive basin walls and culverts.
Speaking of concrete, the sheer scale of the undertaking is hard to overstate. The construction phase necessitated placing more than 4.5 million cubic meters of high-performance concrete solely for the new lock complexes. This wasn't simply about quantity; it demanded consistency, durability, and crack control on a monumental scale, presenting major logistical and material science challenges in sourcing, mixing, and placement across such a vast footprint.
Crucially, the design had to account for the region's seismic activity. Ensuring the resilience of such enormous, rigid concrete structures, along with the heavy, dynamic components like the rolling gates and their mechanisms, against potential earthquakes was a non-negotiable requirement. This demanded rigorous seismic analysis and the implementation of complex reinforcing details throughout the structures, pushing the boundaries of structural design for this type of vital infrastructure.
Finally, a less discussed but critical engineering achievement relates to achieving effective hydrostatic sealing for the massive rolling gates. Holding back immense water pressure with structures weighing thousands of tonnes required manufacturing and installation precision that seems almost contradictory to their scale. Tolerances for fabrication and alignment were frequently specified and achieved in the realm of single-digit millimeters across components spanning tens of meters – a remarkable feat of engineering and execution essential for minimizing leakage and maintaining operational efficiency.

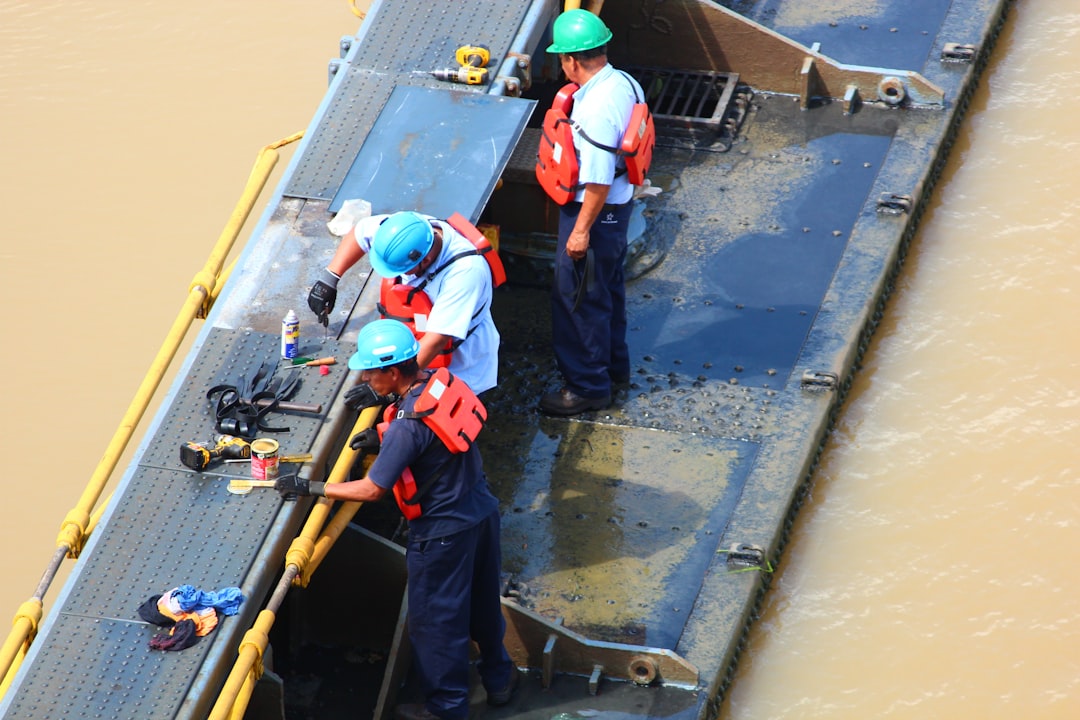

Panama Canal Innovation Lessons for Structural Engineering Today - Ongoing structural considerations for canal maintenance
The ongoing task of maintaining the canal's structural integrity remains a critical factor in its operational future. While past innovations addressed the original build and later expansion for larger vessels, the structures are aging, and the dynamic demands placed upon them by modern, heavier traffic persist. Recent efforts focusing on the existing lock infrastructure highlight the fundamental need for continual, proactive intervention – not just repairs, but upgrades to essential components like gate seals and valves. This is vital for preserving water resources, a perennial challenge, and preventing operational disruptions. The stated goal of extending the canal's useful life by another century through planned maintenance underscores the scale of this commitment and the expectation that structures initially designed for a different era can be adapted and preserved. Integrating newer materials and monitoring technologies into this process is crucial. Beyond routine wear and tear, structural considerations must also continuously account for regional environmental factors, such as seismic risks, ensuring the complex systems of locks and water basins remain robust. Effective long-term management requires a persistent focus on these structural aspects to ensure the canal's reliability as a global conduit.
Maintaining the intricate structural integrity of the canal is a perpetual undertaking, presenting unique challenges that persist decades and even a century after initial construction. Of particular interest is the constant battle against material degradation; the sheer volume of concrete, both in the original unreinforced structures and the later, massively scaled expansion, is under continuous assault from the tropical environment and the alternating exposure to fresh and saltwater within the locks. This necessitates sophisticated assessment techniques to identify issues like alkali-silica reaction or chloride penetration, particularly critical for elements perpetually submerged or subject to fluctuating water levels. Developing and applying specialized repair methodologies for long-term durability under these conditions is an ongoing focus for the engineers involved.
A critical aspect of this structural stewardship involves extensive operations conducted beneath the surface. Maintaining components hidden underwater—ranging from the foundational pintles and sill blocks that the gate structures rely on to the lower sections of the chamber walls—requires dedicated teams of specialized divers and increasingly, remotely operated vehicles. These assets are vital for conducting routine inspections, documenting conditions, and performing complex repairs in challenging environments, where visibility can be poor and water pressure significant.
Furthermore, ensuring the canal's resilience against seismic events is not just a design consideration but a continuous monitoring requirement. The entire canal infrastructure, encompassing both the historic and newer structures, is integrated into a sophisticated real-time seismic network. This system provides a constant stream of data on ground movements, which is essential not only for immediate response protocols but also for assessing the long-term impact of seismic activity on structural performance and prioritizing preventative maintenance efforts based on observed stresses and potential vulnerabilities.
Turning to the mechanical heart of the lock operations, the enormous rolling gates introduced with the expansion present their own set of enduring maintenance complexities. These gates, which effectively translate thousands of tonnes horizontally, rely on intricate bearing systems and guidance mechanisms. The sheer scale of the loads involved means these components require rigorous, specialized servicing and careful monitoring for wear, eventually necessitating planned replacements, a task that requires significant operational choreography to execute without disrupting transit.
Equally demanding, though perhaps less visually dramatic than the newer rolling gates, is the continuous upkeep required for the original canal’s iconic miter gates. While structurally simpler in principle, maintaining their watertightness under significant hydrostatic pressure depends on the precise fit and condition of their robust timber elements and associated sealing mechanisms. This requires meticulous ongoing adjustments by skilled crews and regular refurbishment cycles to ensure these historic components continue to function reliably as vital parts of the operational system.
Panama Canal Innovation Lessons for Structural Engineering Today - Designing structural elements within a complex water system

Designing the structural components within an intricate water system such as a canal demands a fundamental understanding of the dynamic forces and operational requirements at play. The interplay between structures and the managed flow of significant water volumes is paramount, requiring innovative solutions to ensure both reliability and efficiency. The imperative to handle changing demands, including accommodating larger ships, necessitates structural forms that integrate tightly with hydraulic systems. For instance, the strategies employed for water conservation, such as advanced basin systems or specific filling/emptying mechanisms, directly impose complex structural requirements to contain and manage these large volumes under cyclic loading. This points to the critical need during design to anticipate not just immediate loads but also long-term resilience against environmental factors and operational wear. Therefore, successful structural design in this context extends beyond simple load-bearing; it involves creating infrastructure that is inherently linked to the system's function, capable of adapting to evolving needs, and designed with enduring performance and upkeep in mind.
Exploring the structural design intricacies of something on the scale of the Panama Canal's water handling systems unearths fascinating challenges. It wasn't merely about building big boxes and connecting pipes.
For instance, the massive culverts engineered to fill and empty the lock chambers weren't just passive water channels. Their design had to contend with intensely powerful, short-duration pressure surges generated by controlling the flow of millions of liters at high velocity. Accurately predicting and structurally resisting these dynamic "water hammer" effects was a critical part of the puzzle, far exceeding simple hydrostatic calculations one might initially assume dominate the structural forces.
Furthermore, grounding these gargantuan concrete monoliths demanded more than straightforward footings. The diverse geological profile beneath the canal alignment meant encountering varying soil and rock conditions over vast distances. The structural solution involved intricate foundation schemes, blending areas of massive concrete placement with extensive piling arrays and customized supports, tailored section by section to ensure the long-term stability and differential settlement performance of structures bearing immense weight.
A less obvious, but structurally vital, consideration was ensuring the longevity of the steel reinforcement buried within the tropical concrete mass. Designing against corrosion in an environment constantly exposed to moisture, and occasionally brackish water, required careful attention to concrete mix specifics – achieving low permeability and adequate cover depths for the steel. This was a foundational design decision aimed at preventing long-term structural degradation from within.
Handling thermal stresses across structures hundreds of meters long posed another significant structural challenge. While maybe not subjected to extreme seasonal shifts compared to some climates, the sheer volume and rigidity of the concrete walls meant even moderate temperature fluctuations could induce substantial internal forces. Incorporating complex, yet robust, expansion joint systems into the design was essential to allow for structural movement and prevent damaging cracking that could compromise integrity or watertightness.
Finally, the embedded structural components supporting and guiding the colossal 3,000-tonne rolling gates required an exacting level of design analysis. The steel trackways and load-bearing elements within the concrete walls had to manage not only the static weight of the gates but also the complex dynamic forces generated during their precise, controlled movement under immense water pressure – a challenging blend of mechanics and structural engineering detail.
