Electric Motor Testing Fundamentals for Structural Engineering

Electric Motor Testing Fundamentals for Structural Engineering - Why Motor Condition Matters for Structural Integrity

The operational state of electric motors is intrinsically linked to the dependability of the structural systems they operate within or upon. A motor facing internal challenges – whether compromised insulation, core issues, or rotor faults, as detectable through various testing methods like online and offline analysis – isn't merely an inefficient component; it can become a liability for the structure itself. When motors falter or fail unexpectedly due to these hidden conditions, the systems they drive may impose unanticipated dynamic loads, vibrations, or experience a loss of essential function, directly impacting the integrity and safety margins considered during structural design. Relying solely on a motor's continued operation without understanding its underlying health, revealed through diligent testing practices, overlooks a fundamental risk factor for structural performance over time. Assessing motor condition isn't just about maximizing the motor's lifespan; it’s a critical discipline for ensuring the long-term stability and reliability of the structures dependent upon their consistent and predictable operation.

Understanding the state of an electric motor isn't just about electrical performance; its mechanical condition has direct, critical implications for the integrity of the structures it's mounted to and interacts with. Dismissing it as purely an electrical or mechanical engineering problem in isolation is shortsighted in a structural context.

For instance, the dynamic coupling between a motor and its supporting structure is a key concern. When a motor experiences unbalanced forces, perhaps from rotor asymmetry or bearing issues, it vibrates. Should these vibration frequencies align with a natural frequency of the support structure, resonance occurs. The amplitude of vibration can then increase dramatically, potentially leading to stresses far exceeding design limits and causing rapid fatigue damage or even failure in the structural elements over a surprisingly short period.

Consider the often-overlooked effect of localized motor component wear, like minor defects in rolling element bearings. These imperfections generate repetitive, high-frequency impulses that propagate through the motor housing and into the supporting frame. While seemingly small, these cyclical stress waves can act as fatigue drivers in the supporting structure's material, initiating or accelerating crack growth in bolts, welds, or the structural members themselves over long operational lifetimes.

Furthermore, heat management in a motor isn't just an efficiency or insulation life issue. Excessive heat generation, whether due to electrical losses, overload, or ventilation problems, leads to significant temperature variations between the motor body and the cooler supporting structure and foundation. This differential thermal expansion induces considerable internal stresses within the motor-structure connection, potentially loosening bolted joints, causing localized yielding, or even contributing to deformation or cracking in less ductile structural components.

Electric motors are also susceptible to severe electrical faults internally, such as phase-to-phase short circuits. While the primary impact is electrical, the transient electromagnetic forces generated during such events can be immense and near-instantaneous. These translate directly into sudden, high-magnitude shock loads exerted on the motor's mounting hardware and the supporting structure. Such transient forces are distinct from normal operating loads and require careful consideration in structural design and assessment, as they can exceed typical capacity.

Finally, the structural integrity and stiffness of the motor's mounting system itself play a crucial role in the combined system's dynamic behavior. An inadequately stiff or damaged mounting frame can shift the system's critical speeds, potentially bringing them into the motor's operating range or frequencies associated with specific motor faults (like rotor bar issues detectable via online testing methods). This poor structural foundation doesn't just passively receive loads; it actively exacerbates motor vibration issues, accelerating wear and damage to both the motor and the support structure in a detrimental feedback loop.

Electric Motor Testing Fundamentals for Structural Engineering - Basic Motor Parameters Relevant to Structural Loads

Examining basic motor parameters relevant to structural loads increasingly involves moving beyond simple static weight and steady-state torque values. As of mid-2025, there's a growing emphasis on how the dynamic nature of electric motor operation translates directly into forces and stresses on supporting structures. This includes a more sophisticated understanding of load variations and transient events – such as start-up surges or sudden load changes – and how the associated current, voltage, and speed dynamics generate short-duration, high-magnitude forces often overlooked in traditional structural analysis. Furthermore, integrating data from modern motor testing and condition monitoring, which capture subtle changes in parameters like current harmonics or vibration signatures linked to internal motor health, is becoming critical. These parameters, previously seen primarily through an electrical or mechanical reliability lens, are now recognized as indicators of potential future mechanical imbalances or fault conditions that will inevitably impose detrimental dynamic loads on the structure over time. The challenge remains in effectively translating this wealth of operational motor parameter data into actionable structural integrity assessments, bridging the gap between electrical/mechanical performance and structural engineering discipline.

Delving into the fundamental characteristics of electric motors reveals several parameters, perhaps less obvious initially, that bear significant weight on the structural components supporting them. These aren't merely electrical or mechanical performance metrics; they dictate specific force applications and stresses experienced by the supporting framework, even under normal operation.

Take, for instance, the inherent property of rotor inertia. While primarily recognized for its role in influencing acceleration or deceleration times, the kinetic energy stored within that rotating mass translates into substantial reaction torques when motion is abruptly arrested – say, by an electrical trip or an unforeseen mechanical jam. These forces aren't steady-state; they are transient pulses, potentially far exceeding normal running torque values and presenting a distinct, often underestimated, challenge for the design integrity of motor mounts and base plates.

Consider also the chaotic initial moments of operation: the motor start. Direct-on-line starting of common induction machines demands a surge of energy, characterized by locked-rotor currents that dwarf normal operating current and simultaneous pulsating torques that can momentarily reach peaks significantly higher than the motor's steady maximum. This isn't a gentle ramp-up; it's a dynamic jolt, a sudden application of force to the mechanical interfaces connecting the motor to its foundation, demanding robust fasteners and a capable support structure to absorb this regular shock.

Even seemingly subtle internal geometry plays a role. The necessary air gap between the rotor and stator, if not perfectly uniform around the circumference due to manufacturing tolerances or bearing wear, creates an unbalanced magnetic pull. This results in a constant or slowly varying radial force that acts off-center, effectively applying a continuous bending moment to the motor shaft and bearings. This force ultimately transfers as a static or fluctuating lateral load onto the motor's mounting structure, a perpetual, off-axis burden that requires careful consideration beyond just vertical support.

Furthermore, the internal electromagnetic forces aren't perfectly smooth. The segmented design of rotor and stator cores inherently generates periodic force pulsations at specific harmonic frequencies tied to the power supply and rotational speed. While often small in amplitude during healthy operation, these electromagnetic ripples contribute to the motor's intrinsic vibration signature, acting as constant internal drivers of low-level stress waves that propagate into the structure, contributing to cumulative fatigue damage over extended operational lifetimes.

Finally, consider the motor's operational temperature variations, often linked to its efficiency class. Lower efficiency typically means more electrical energy is dissipated as heat internally. This results in larger swings in motor body temperature between cold start and hot running conditions. These repeated cycles of heating and cooling cause significant thermal expansion and contraction of the motor casing. This physical "breathing" effect imposes cyclical stresses on the mounting bolts and structural elements connecting the motor to its support, a repetitive fatigue mechanism that can gradually loosen fastenings or initiate cracks over thousands of operating cycles.

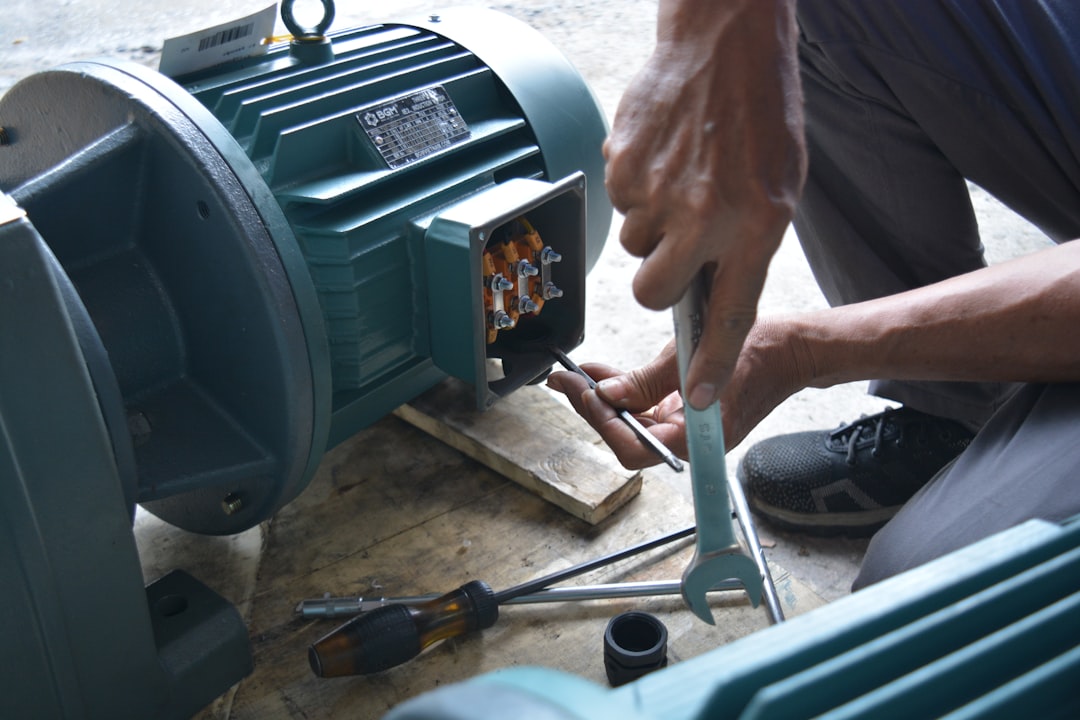

Electric Motor Testing Fundamentals for Structural Engineering - Fundamental Motor Testing Techniques for Structural Analysis

As of mid-2025, the application of fundamental motor testing techniques toward structural analysis is increasingly focusing on methodologies capable of capturing the dynamic interplay between the motor's internal state and the resulting forces transmitted to its support. This evolution sees a greater emphasis on high-fidelity data acquisition during operational transients, alongside continuous monitoring for subtle deviations in parameters like current waveforms or vibration spectra. While traditional tests remain foundational, the frontier involves refining data analysis to identify specific fault signatures that translate into quantifiable structural risks, moving beyond simple motor health diagnostics to directly inform structural integrity assessments. The effective integration of this motor-specific diagnostic data into established structural modeling and fatigue analysis frameworks continues to be a significant hurdle.

Moving beyond simple parameters, fundamental motor testing techniques themselves yield often overlooked insights highly relevant to the structural engineer tasked with ensuring the integrity of the supporting framework. Surprisingly, examining the electrical current and voltage signatures isn't solely about the motor's electrical health; these waveforms can carry subtle indicators, electrical 'fingerprints' if you will, of the motor's *mechanical support condition* – hinting at issues like foundation inconsistencies or uneven base plate contact that affect how the motor reacts within its mounting constraints. Furthermore, while vibration analysis identifies internal mechanical faults, a detailed spectral analysis provides a crucial map of the specific *frequencies and sources* of the dynamic energy being continuously imparted onto the supporting structure. This granularity, identifying signatures from bearings or rotor bars, is essential input for understanding the precise forcing functions the structural system must accommodate. Even seemingly conventional electrical tests like insulation resistance, while primarily aimed at preventing electrical failure, can indirectly signal *physical deterioration* within the stator's structural components – perhaps delamination in the core or winding supports. Such internal physical changes can subtly alter the motor's inherent stiffness or mass distribution, influencing its mechanical interaction with the mount, a structural implication easily missed if viewed only electrically. Accurately measuring the motor's air gap – the small space between rotor and stator – provides quantitative geometric data critical for calculating the magnitude and direction of the inherent unbalanced magnetic pull force, a persistent off-axis load vector the mounting structure must withstand. Various techniques, some integrating electrical signals, allow precise determination of rotor eccentricity, translating a fundamental motor geometry into a defined structural load parameter. Finally, while thermography often scans for general overheating, focusing it on the *motor-to-structure interface* itself can reveal localized hot spots indicating mechanical energy dissipation – friction or excessive stress – directly at the mounting points or adjacent structural members. This offers a unique, non-contact view into potential structural connection issues like loose fasteners or uneven load transfer that could accelerate localized fatigue in the structural elements supporting the motor.

Electric Motor Testing Fundamentals for Structural Engineering - Interpreting Motor Test Data for Structural Support Design

Interpreting motor test data for structural support design is currently undergoing a transformation. As of mid-2025, merely knowing if a motor passes or fails standard electrical or mechanical checks is increasingly insufficient for comprehensive structural assessment. The critical need now is to extract quantitative information from these tests – data reflecting operational stresses, transient forces, and deviations from expected dynamic behavior – that can be directly translated into inputs for structural analysis and load case definition. This necessitates looking beyond simple fault codes or pass/fail metrics to understand the *magnitude*, *frequency*, and *nature* of the forces the motor is imposing on its supports under various conditions. The ongoing challenge is effectively correlating these complex multi-parameter data sets from motor testing with the specific requirements of structural models and fatigue life predictions, a task requiring a deeper, cross-disciplinary understanding.

Here are some insights gleaned from delving into electric motor test data that offer surprising relevance for structural support design:

While vibration analysis is standard practice, truly interpreting its spectral output means discerning the specific frequencies tied to known motor faults, like subtle bearing cage pass frequencies or broken rotor bar harmonics. For the structural engineer, this isn't just a motor health indicator; it's crucial data. These specific frequencies represent precisely the dynamic forces the support structure is being asked to absorb. Comparing these forcing frequencies directly against the structural system's own modal characteristics reveals the potential for harmful resonance conditions in a way that general vibration levels simply cannot, highlighting specific structural elements at risk.

It may seem counter-intuitive, but electrical data pointing to phase unbalance in voltage or current has direct structural implications. When the electrical phases feeding the motor aren't perfectly balanced, it creates an asymmetrical magnetic field within the machine. This isn't just an electrical inefficiency; it generates significant, often overlooked, pulsating torsional and radial forces. These forces act directly on the stator and transfer through the frame and mounting system, contributing to fatigue and potential structural loosening over time. Translating the electrical imbalance magnitude into predictable force amplitudes for structural analysis remains a complex task, however.

Motor Current Signature Analysis (MCSA), typically used to detect electrical or mechanical faults within the motor itself, offers a surprisingly powerful, albeit indirect, view into the structural mounting system's integrity. Specific sidebands appearing in the motor's current waveform can be precise indicators of mechanical issues such as a 'soft foot' condition – where one mounting bolt or support point isn't carrying its fair share of the load due to unevenness in the base plate or frame. Detecting this through an electrical signature allows diagnosis of a fundamental structural support problem without direct physical measurement of the mount points, though correlating the electrical symptom to the structural load distribution is a challenge.

Even data from seemingly purely electrical tests, like those assessing insulation health (e.g., Polarization Index or Dielectric Absorption Ratio tests), can carry subtle warnings about the motor's internal mechanical integrity that impact its interaction with the support structure. Declining insulation values don't just forecast electrical failure; they can sometimes coincide with, or indicate underlying issues leading to, physical degradation of the stator winding supports or core lamination bonding. This internal physical breakdown changes the motor's inherent structural rigidity, altering how forces are transmitted internally before reaching the external casing and the structural connection points, potentially shifting stress concentrations.

Finally, moving beyond static measurements, the dynamic variation of the air gap between the rotor and stator during operation yields critical data. Due to factors like bearing clearances, thermal expansion, or shaft deflection under load, this gap isn't always constant. Advanced techniques can quantify this dynamic variation. This is significant because the resulting unbalanced magnetic pull (UMP) force, already a static load factor, now becomes a *fluctuating* load. Understanding the magnitude and frequency content of this dynamically changing UMP is essential for accurate fatigue life assessment of the structural members and fasteners supporting the motor, requiring a shift from static load calculation to dynamic force characterization.

Electric Motor Testing Fundamentals for Structural Engineering - Vibration Testing and Structural Response to Motor Operation

Regarding Vibration Testing and Structural Response to Motor Operation, the current emphasis as of mid-2025 is increasingly on high-fidelity vibration data acquisition during operational cycles and transients. The focus is shifting from merely detecting general vibration levels or basic motor faults towards a more sophisticated analysis of vibration spectral content. This aims to pinpoint specific forcing frequencies and signature patterns that can be correlated directly to quantifiable dynamic loads and potential structural risks, moving beyond qualitative assessments to inform detailed structural analysis and fatigue prediction models. However, effectively integrating this granular, complex vibration data into established structural engineering workflows remains a critical challenge.

Beyond simply measuring how much a point on a structure moves, analyzing the *timing*, or phase, of vibration signals recorded simultaneously at different locations when an electric motor is running provides a crucial map. This phase data reveals the specific dynamic *shape* the structure takes on as it responds to the motor's forces at various frequencies. Understanding these modal deformation patterns is essential for truly verifying whether our structural models accurately predict how the physical system behaves under dynamic load, offering insights far richer than amplitude alone.

It's easy to focus only on the linear shaking – the vibration in vertical or horizontal planes. However, the torsional vibration generated by electric motors – twisting motions about the shaft axis – warrants significant attention from a structural perspective. These aren't merely rotational curiosities; they translate directly into oscillating torques transmitted through couplings, shafts, and ultimately into the motor's foundation. This can excite torsional resonant frequencies in the connected system, potentially driving distinct fatigue mechanisms in structural elements fundamentally different from those caused by bending stresses.

Counter-intuitively, the dynamic characteristics of the seemingly solid structural foundation supporting an electric motor aren't just passive boundary conditions. There's evidence suggesting that the stiffness and damping properties of the support structure can subtly, but significantly, influence the natural frequencies and vibration behavior of *internal* motor components. This points to a more complex, bidirectional vibration interaction between the machine and its base than is often acknowledged in simplified analyses, representing an underappreciated feedback loop.

A surprising consequence of structural flexibility is how dynamic forces from the motor, even those acting predominantly along a single axis – like radial forces due to rotor imbalance – can efficiently induce significant vibration and stress in *orthogonal* directions within the supporting structure. This cross-coupling means that loads applied vertically might manifest as notable lateral movement and stress, and vice-versa. It's a reminder that structural response isn't always aligned with the direction of the exciting force, necessitating consideration of multi-axis interactions.

Finally, detailed vibration testing can reveal dynamic signatures beyond the predictable harmonics tied to the motor's running speed or the electrical line frequency. These non-harmonic signals often point to unsettling discontinuities or intermittent events, such as minor impacts or regions of localized looseness within the motor-structure system. Critically, these events transmit sharp, transient stress waves – pulses with high magnitude but short duration – that can become potentially insidious drivers of localized fatigue in specific, susceptible structural components, even if overall vibration levels are relatively modest.
